產品關鍵詞：山東濟南初效空氣過 山東濟南中效空氣過濾 山東濟南高效空氣過濾
- 產品名稱： 山東濟南初效空氣過濾器|山東濟南中效空氣過濾器|山東濟南高效空氣過濾器
- 產品編號：
- 產品商標：成凈高科凈化
- 產品規格：595*595
- 參考價格：面議
- 更新時間：2025/6/23 17:13:58
- 點擊次數：684次

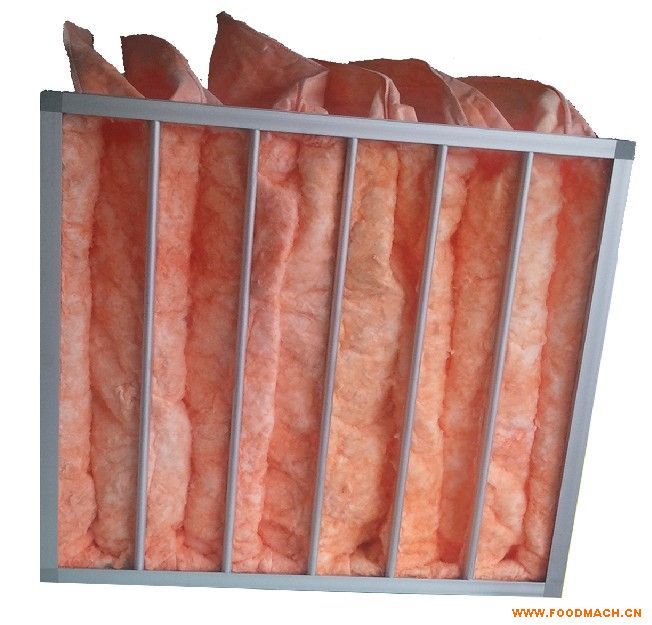

Air filter bag filter early effect
特點Features
●可重復使用多次
●阻力小、風量大
●廣泛運用于空調系統的中級過濾
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system
of intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金或鍍鋅板外框
●External frane：Aluminum alloy steel or frame
●濾料材質：新型復合無紡布
●Filter material: new composite nonwoven fabric
●濾料顏色：白色
●Liao color: white
●密封條：醋酸乙酯
●Gasket：EVA
●使用*高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
|
型號 model |
外形尺寸 Outside Dimensions (mm) |
額定風量 Rated air flow (m3/h) |
初阻力 Initial resistance(Pa) |
效率（級別） Efficiency (class) |
濾料顏色 Liao color |
袋數 pockets |
|
CJ-S10-B1 |
495×295×500mm 20″×12″×20″ |
1500m3/h |
25~35Pa |
25-35% G3 35-45% G4 |
綠白棉 |
5 |
|
CJ-S10-B2 |
495×495×500mm 20″×20″×20″ |
2500m3/h |
5 | |||
|
CJ-S10-B3 |
595×295×500mm 24″×12″×20″ |
2000m3/h |
6 | |||
|
CJ-S10-B4 |
595×495×500mm 24″×20″×20″ |
3200m3/h |
6 | |||
|
CJ-S10-B5 |
595×595×500mm 24″×24″×20″ |
3800m3/h |
8 | |||
|
CJ-S10-B6 |
495×295×600mm 20″×12″×24″ |
1800m3/h |
5 | |||
|
CJ-S10-B7 |
495×495×600mm 20″×20″×24″ |
3200m3/h |
5 | |||
|
CJ-S10-B8 |
595×295×600mm 24″×12″×24″ |
2500m3/h |
6 | |||
|
CJ-S10-B9 |
595×495×600mm 24″×20″×24″ |
4000m3/h |
6 | |||
|
CJ-S10-B10 |
595×595×600mm 24″×24″×24″ |
4500m3/h |
8 |
*可要據用戶要求定制不同規格型號的過濾器
